Solar Panel - Lifter

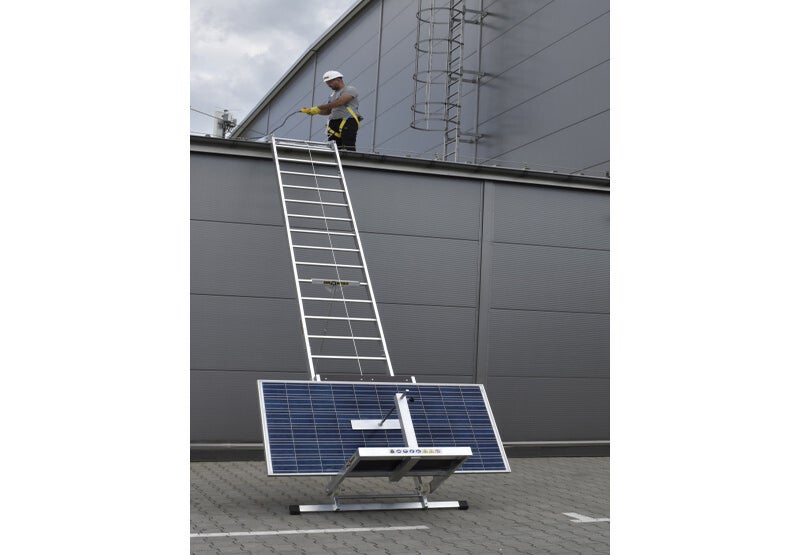

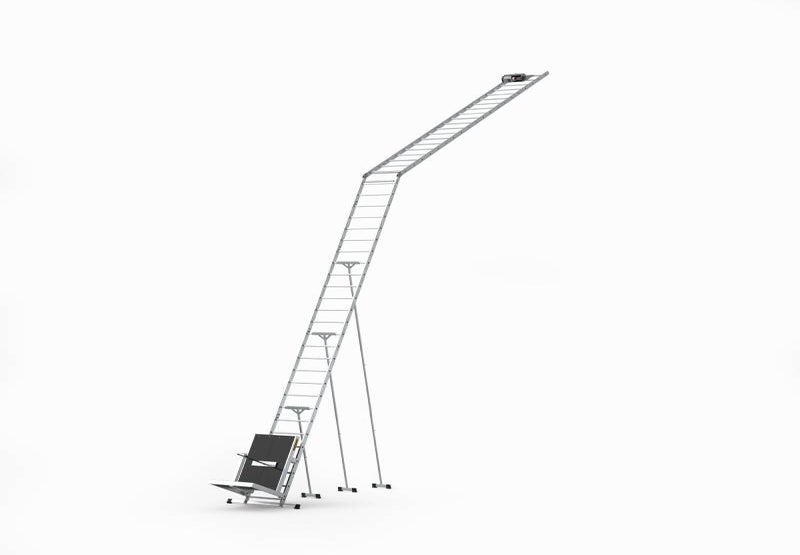

The ladder hoist PV Panel Lifter is a lightweight aluminum structure, ideal for supporting the installation and maintenance of photovoltaic panels.

Residential solar installations often involve the dangerous and strenuous task of manually carrying solar panels up ladders, risking worker injury and panel damage. The ladder hoist PV Panel Lifter provides a safe and efficient solution, securely lifting panels with its specialized trolley and powerful motor.
Drastically reduce installation times, protect your team from falls and strains, and prevent costly panel damage.



  • Easy to assemble and disassemble
  • Modular design ensures ease of pack down and fitment in van
  • Load capacity 125kg

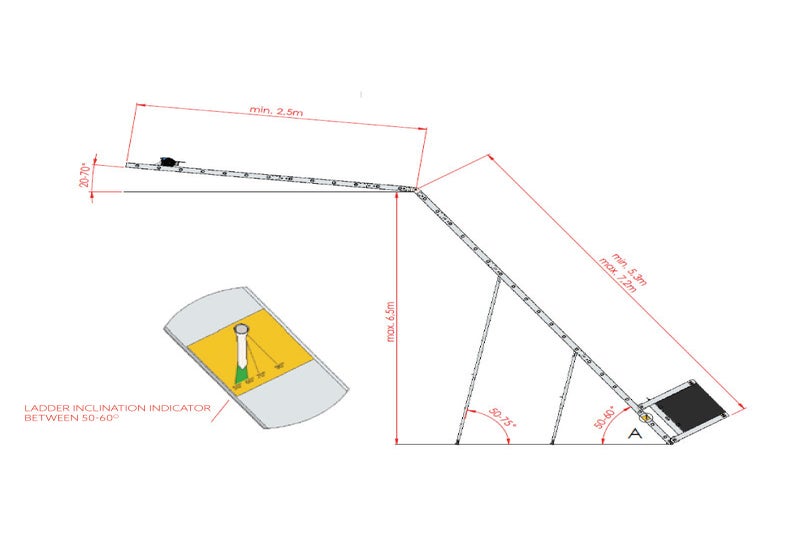

  • Maximum compatible roof height: 6.5m.
  • Lifting speed 8m per min

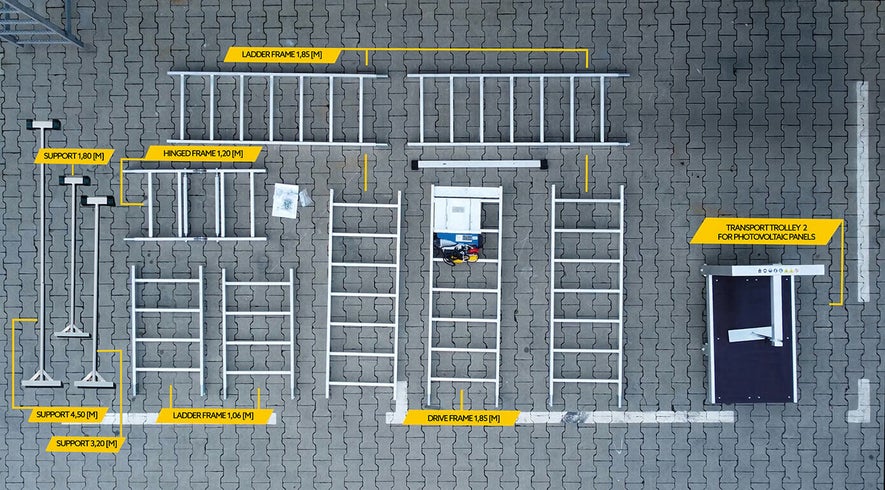

 Set Includes:

  • Ladder frame 1.85m (with stabilizer) - 1 pc.
  • Ladder frame 1.85m - 3 pcs.
  • Ladder frame 1.06m - 2 pcs.
  • Hinged frame - 1 pc.
  • Drive frame & winch - 1 pc.
  • Transport trolley for photovoltaic panels - 1 pc.
  • Telescopic support - 1 pc.
  • Mounting bracket - 1 pc
